Moog Music Spectravox: Beyond Vocals—Vocoder Alchemy with Drum Machines

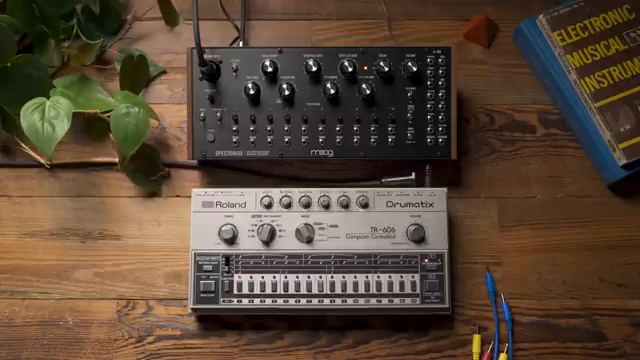

Moog Music introduces the Spectravox as a device that sits comfortably between the worlds of instrument and processor. While many associate vocoding strictly with vocal processing, this video immediately challenges that assumption by proposing alternative sources for the program input. The Spectravox’s design encourages users to think beyond traditional boundaries, inviting experimentation with any sound source that can be fed into its circuitry.

The video’s approach is refreshingly patch-oriented, focusing on the practicalities of using Spectravox as a creative tool rather than a mere effect. By highlighting its flexibility, Moog positions Spectravox as a device that can transform and recontextualise a wide range of audio material, not just the human voice. This sets the stage for the ensuing demonstration, where the boundary between instrument and processor becomes deliciously blurred.

The heart of the demo is the pairing of the Roland TR-606 drum machine with Spectravox in vocoder mode. Instead of the usual vocal input, the percussive output of the 606 is routed as the program signal, while Spectravox’s internal oscillator serves as the carrier. This setup allows the rhythmic and tonal nuances of the drum machine to be mapped onto the oscillator and noise generator, resulting in a hybrid sound that’s both synthetic and unmistakably percussive.

As elements of the drum pattern are muted or altered, the impact is immediately reflected in the vocoded output—demonstrating how tightly the Spectravox tracks the spectral content of its input. The video showcases adjustments to oscillator pitch, waveform, and the addition of noise, all of which further shape the resulting texture. It’s a hands-on illustration of how Spectravox can inject new life into even the most straightforward drum patterns.

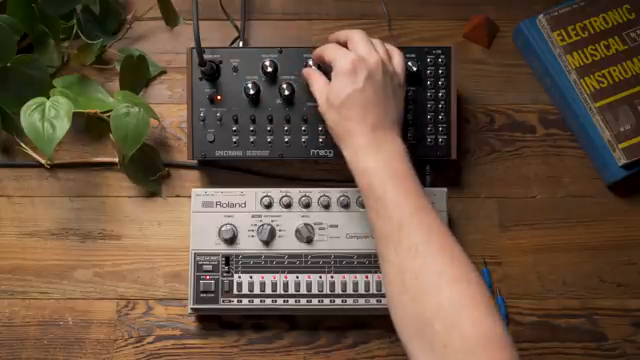

A standout feature in the Spectravox arsenal is the Spectral Shift function, which moves all ten filter bands in parallel across the frequency spectrum. This allows for sweeping changes in timbre, especially when paired with the resonance control. Increasing resonance across the bands introduces a pronounced metallic character, and the effect becomes even more dramatic when spectral shifting is modulated—either manually or via the built-in LFO. The interplay between these controls is central to crafting evolving, animated textures that go far beyond static vocoder sounds.

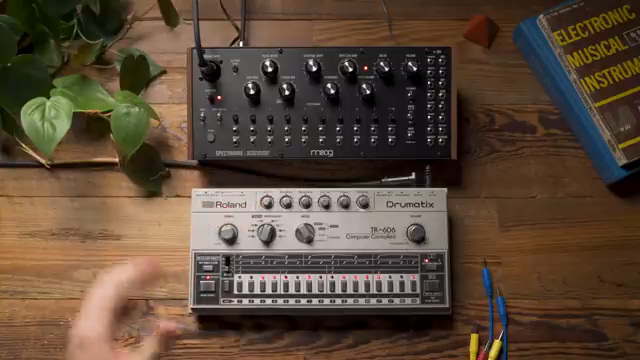

Spectravox’s filter bank patch bay is where things get truly modular. Each of the ten bands features its own envelope follower output and VCA CV input, allowing users to reroute which frequency content controls which filter band. By patching, for example, the envelope follower from the kick drum’s band into a higher frequency band, or vice versa, the frequency spectrum can be creatively scrambled, leading to unexpected and lively results.

The video demonstrates how these patch points can be used not only to remap spectral energy but also to modulate other parameters, such as oscillator pitch or spectral shift. The band volume knobs act as attenuators for the incoming CV, providing further nuance. This flexibility transforms Spectravox from a fixed processor into a dynamic, patchable sound design tool, limited only by the user’s imagination and patch cable supply.
