Moog Music Messenger: Classic Ladder Filter, New Tricks

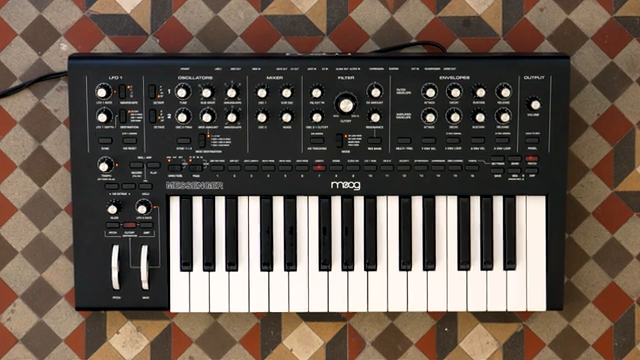

The Messenger filter section is Moog’s latest homage to the legendary transistor ladder filter, a design that’s shaped the sound of electronic music since the 1960s. Moog’s video opens by reminding us just how central this circuit is to their legacy, having appeared in nearly every Moog instrument and countless records. The Messenger doesn’t just rest on nostalgia, though—it’s built to offer both the classic sound and a suite of new capabilities.

What sets Messenger apart is its innovative approach to the ladder filter’s topology. By tapping different points along the transistor ladder and mixing these outputs, Moog has managed to extend the filter’s sonic palette. This pole-mixing method is the foundation for many of the new tricks Messenger brings to the table, setting the stage for a filter that’s as much about exploration as it is about tradition.

Messenger isn’t limited to the classic four-pole lowpass response. Moog demonstrates how the module can morph into a two-pole lowpass, providing a gentler slope and a brighter, more open sound. This is achieved through the aforementioned pole-mixing, which allows for a less aggressive roll-off compared to the traditional Moog filter.

But the fun doesn’t stop there. Messenger also offers proper bandpass and highpass modes, expanding its utility for sound designers who crave more than just low-end sculpting. These additional filter responses are shown in action, highlighting how Messenger can move from classic warmth to sharper, more pronounced filtering—ideal for both subtle timbral shifts and dramatic sweeps.

One of the perennial quirks of the Moog ladder filter is its tendency to lose bass as resonance increases—a trait both loved and lamented by synth aficionados. Messenger addresses this with a resonance compensation feature, activated via the res bass switch. Moog’s demo shows how engaging this switch restores the low-end, even at high resonance settings, allowing for more aggressive filtering without sacrificing the foundational frequencies.

This compensation isn’t just a one-trick pony; it works across all filter modes, giving users consistent control over their sound regardless of the chosen response. The result is a filter that maintains its punch and presence, opening up new avenues for bass-heavy patches and thick, resonant textures that don’t thin out when pushed.

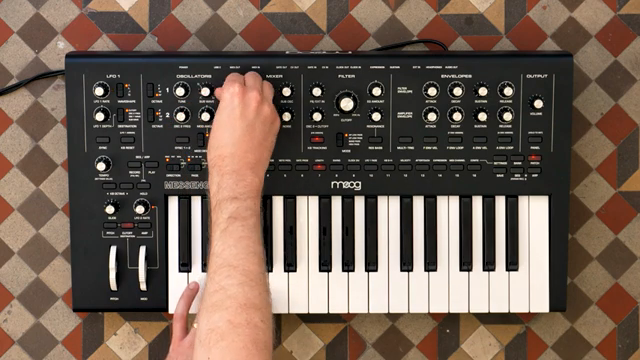

Messenger’s filter section isn’t just about static responses—it’s built for creative feedback and patching. The external input knob allows users to blend in signals from the rear panel, but with nothing patched, it routes the mixer output back into itself. This feedback loop can add anything from subtle drive to wild, unpredictable tones, reminiscent of the classic Minimoog Model D headphone trick.

Moog points out that Messenger’s built-in feedback is pre-filter, but if you want true Minimoog-style post-filter feedback, a simple patch cable does the job, just as it did in the 1970s. This flexibility means Messenger can serve both as a straightforward filter and as a playground for feedback experiments, making it a versatile tool for those who like to push their signal chain to the edge.
