Monotrail Tech Talk: Voltage-Controlled FX Sends – The Dirty Details

Most people slap a reverb or delay on their synth and call it a day, but in modular land, that’s just the tip of the iceberg. Monotrail Tech Talk kicks things off by reminding us how effects – when voltage-controlled – don’t just liven up your sound, they can be the difference between stale and slamming. The advantage? Modulation everywhere. Not just on the effect’s parameters, but on the send itself.

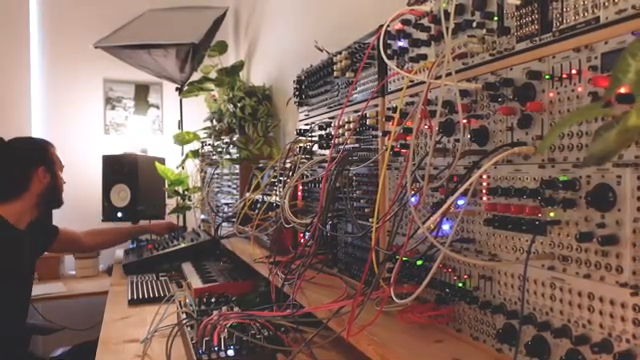

The trick here is sending your voice into effects modules with intent, not just maxing out some wet/dry knob. Want your synth solo to weave in and out of a granular processor, or the FX to come and go with a random twist? This is how you break out of the static DAW mindset and start patching like you mean it.

Here’s where the fun kicks in. Monotrail shows off patches where FX sends are driven by everything from panners to comparators, and the results are wild. Imagine your delay only catching the short percussive hits, or your reverb swelling up on the softest notes. That’s voltage control doing its thing.

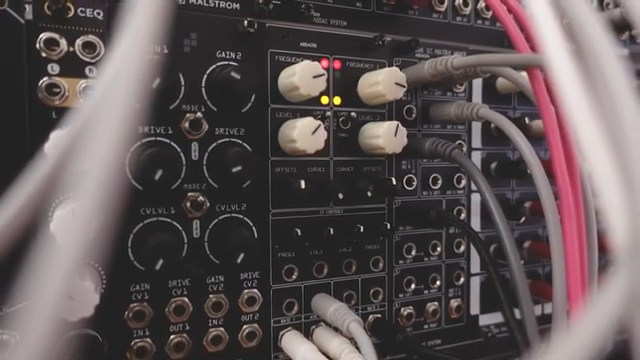

The magic isn’t just in the concept – it’s about choosing which parameter is in the driver’s seat. Pitch, brightness, envelope, or even a random voltage can all be patched to control the send. This approach is more than a hack, it’s a full-on performance tool. Suddenly, your FX don’t just sit in the mix – they move, duck, and breathe along with your patch.

Think shoving a signal through a VCA is as fancy as it gets? Monotrail’s just getting started. He shows how copying your dry signal and running it into a VCA before the effects module opens up a world of dynamic control. No more killing your dry sound or chopping off those tasty effect tails – just pure, hands-free modulation madness.

This is where the real toaster-fight begins. Use inverted LFOs for upside-down behaviour, clocked sequencers for rhythmic send automation, or dual voices for slick sidechain-style FX ducking. If you’re still patching everything straight into your FX module, you’re missing out on a whole layer of movement. And honestly, some of these tricks are better seen than explained – the video’s examples are pure patch candy.

Advanced patching isn’t just about fancy modules – it’s about wrangling voltages with precision. Monotrail dives into using utility modules like offset and gain to get your signals into the sweet spot. Got a sequencer spitting out 2–3V and a VCA that wants 0–5V? No problem, just juice it up and shift it with some negative offset.

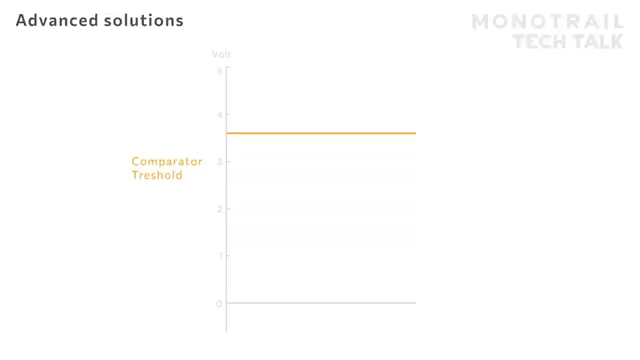

Comparators and window comparators get a shout too. Want to trigger FX sends only when a note goes above a certain pitch, or when a random voltage spikes? Set your threshold, fire off a gate, and let the mayhem begin. It’s nerdy, it’s clever, and it means your FX can be as precise – or chaotic – as you want. Utilities: not sexy, but absolute patch MVPs.
